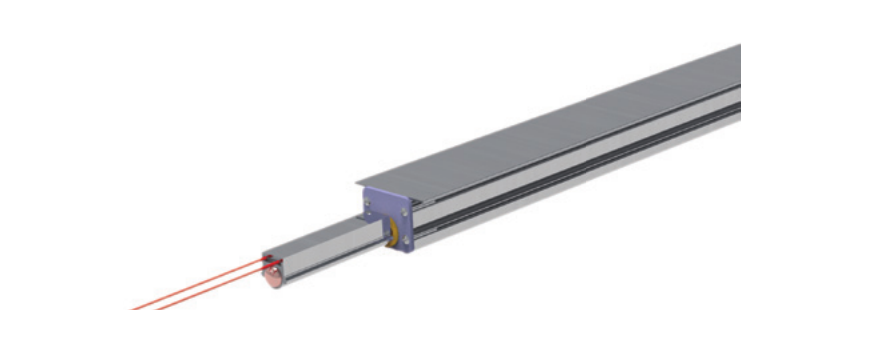

IB-BAR · 220 V · the electrical load of every product
The thermal-storage heating module at the core of every product in both ranges. A self-regulating ceramic heater boils a few millilitres of working fluid sealed under vacuum inside a heat pipe; the vapour carries heat along the tube, warms an elvan-stone thermal mass held in an aluminium storage tube, and condenses back. No pump, no plumbing, no circulating water.
₩150000
IB-HEAT · 220 V · self-regulating PTC · one per bar
The self-regulating ceramic element that drives one Innergy Bar. Its resistance rises as it warms, so it reduces its own current rather than running away — measured at 70.65 W at -15 C and 88 W at -40 C against a 100 W rating. Supplied one-to-one with the bar.
₩50000

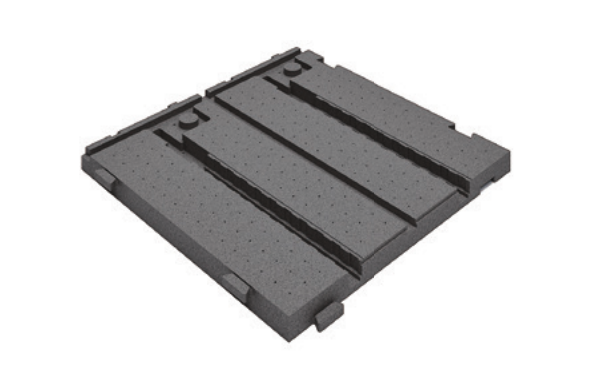

IB-BLOCK · EPP foam · the heated-area substrate
The moulded EPP block the Innergy Bars sit in across the heated area. Snap-together dry assembly — no screed, no curing time.
₩40000

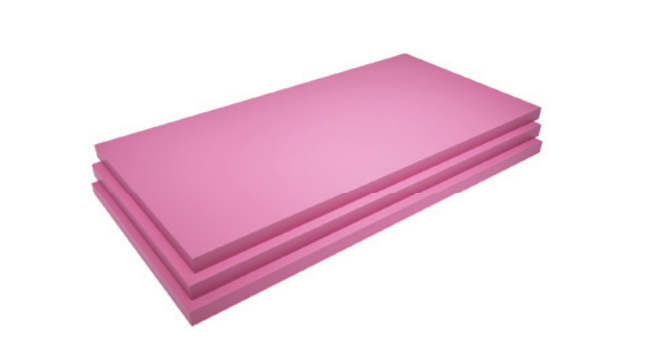

IB-FOAM · insulation for unheated areas
Fills the floor area that is deliberately not heated — under fixed furniture, or anywhere no one walks — so no energy is spent there.
₩20000

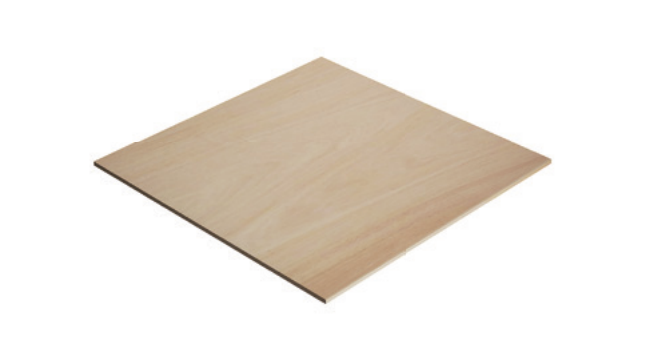

IB-PLY12 · E0 emission class
The load-spreading cover laid over the whole assembly before the finish flooring. E0 is a Korean/Japanese formaldehyde emission class.
₩35000

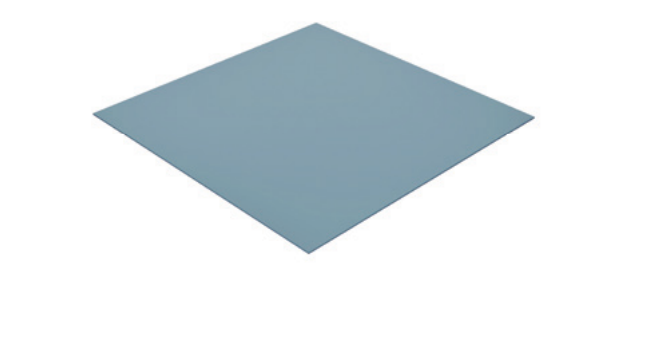

IB-DIFF · earthed · spreads heat, shields EMF
A thin earthed metal sheet that spreads heat evenly across the surface and prevents local hot spots. Also acts as a shielding layer.
₩15000

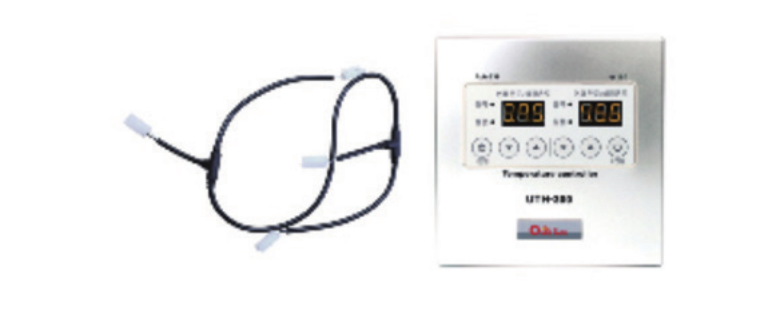

IB-THERM · UTH-300 · two-zone
Two-zone controller: a single room can be split so a sleeping area runs at 40 °C while the living area runs at 30 °C, adjusted by season. May be substituted with an equivalent or better model depending on site conditions.
₩150000
IB-ALC · for large floor areas
The substrate used where the floor area is large. Easier to level across a big span, lets bar spacing be tuned to the climate, and can reuse an existing screed structure.
IB-VOLC · ALC method cover
The cover board laid over the bars in the ALC / multi-board method, in place of plywood.

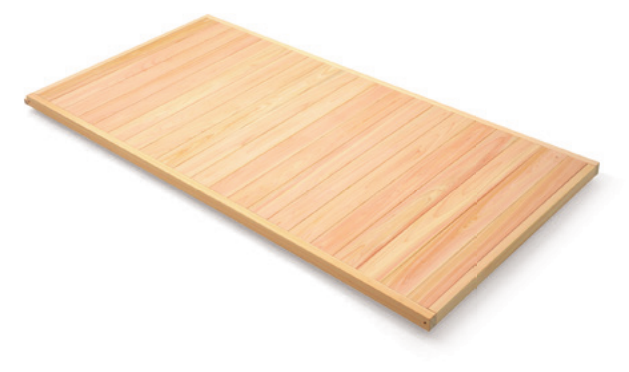

HG-1000 · all-in-one, Innergy Bar built in
An all-in-one finished platform with the Innergy Bar built in — Ondol Life's flagship since 2008. Given an electrical supply it installs and runs immediately. Hinoki louvre surface that releases phytoncide, elvan stone thermal mass, PTC heater, and an earthed diffusion plate. No paint or chemical finishes: raw timber as it is.
Not yet available to order online.

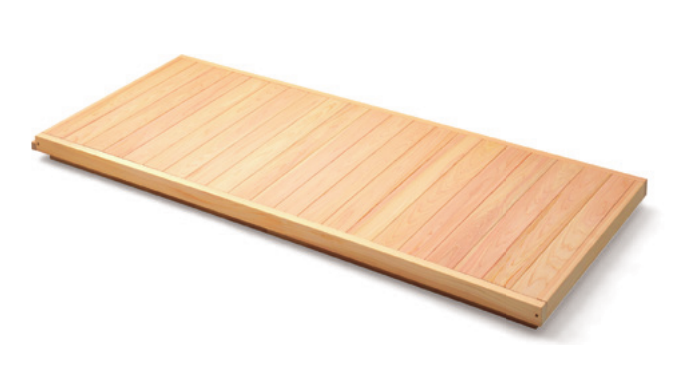

HG-800 · narrower variant
The narrower Hinoki Gudeul. Same construction and materials as the 1000, for tighter spaces.
Not yet available to order online.

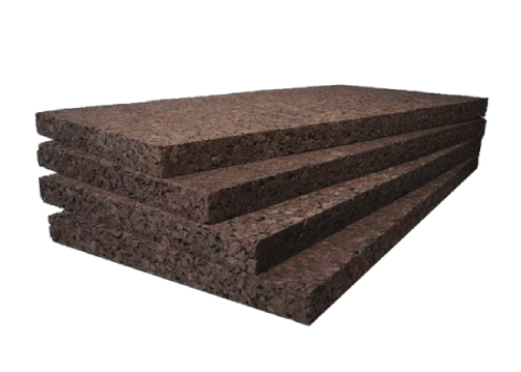

HG-CORK · underlay for Hinoki Gudeul
The insulating underlay laid before the Hinoki Gudeul units. An inspection port is fitted during installation and the wiring section closed with screws so later service is straightforward.

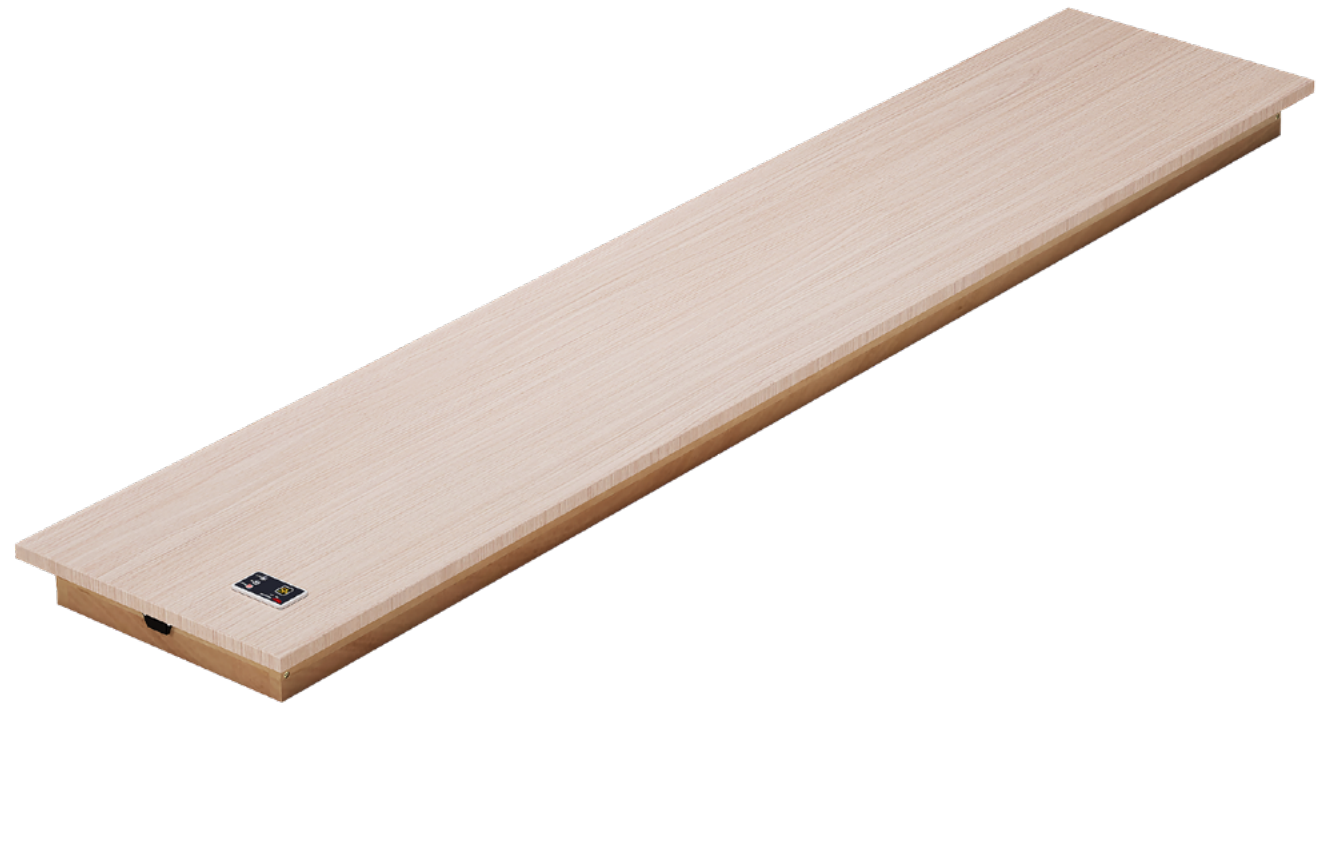

HO-H1 · 1 Innergy Bar
Furniture-style ondol with one Innergy Bar built in. Plug it in and use it — no installation, no piping, simple to relocate. HPM-coated birch plywood body: scratch, stain and moisture resistant, wipes clean. Silent by design, with no fan and no pump.
Not yet available to order online.

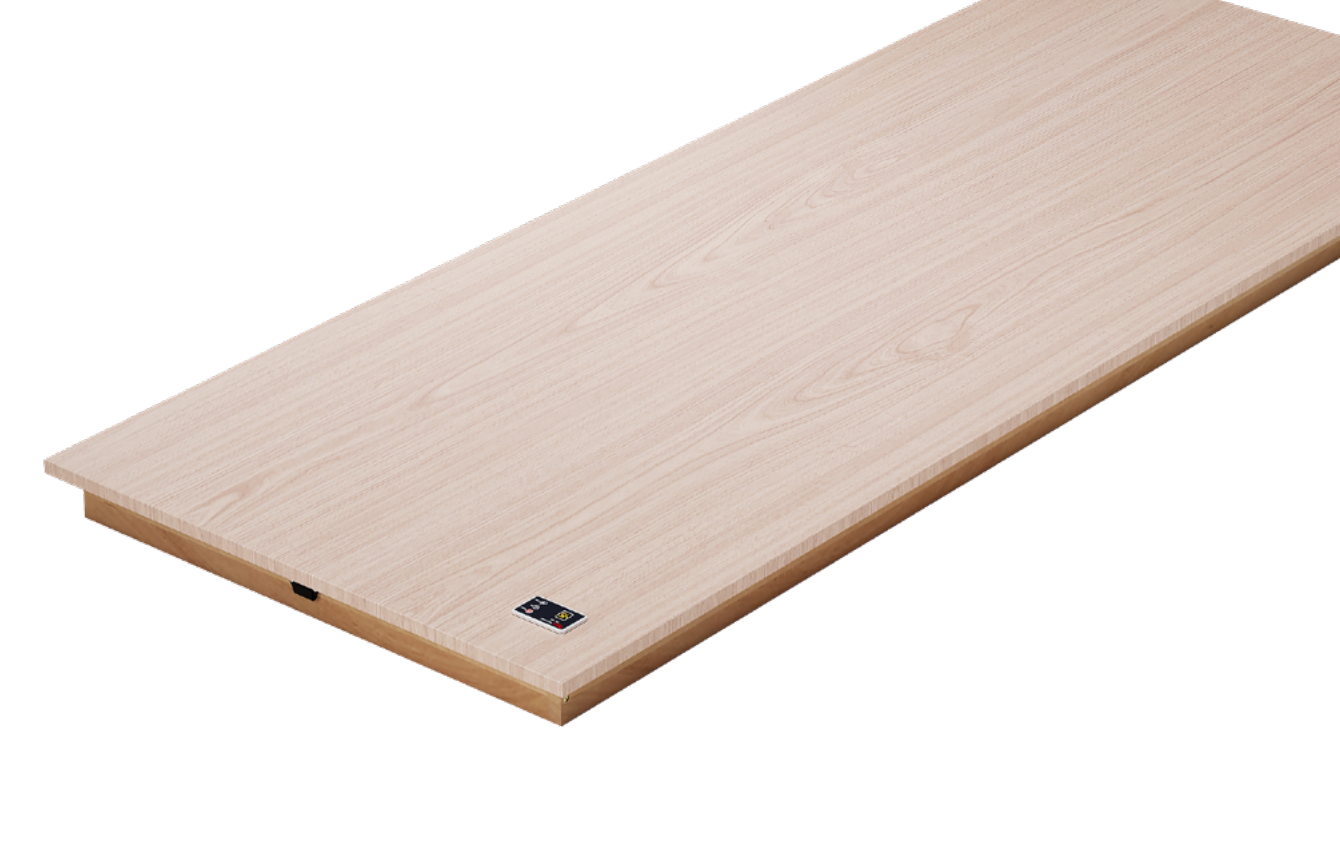

HO-H2 · 2 Innergy Bars
Two Innergy Bars in the same furniture construction as H1. Sized for anywhere that needs warmth in a used space rather than a whole room.
Not yet available to order online.

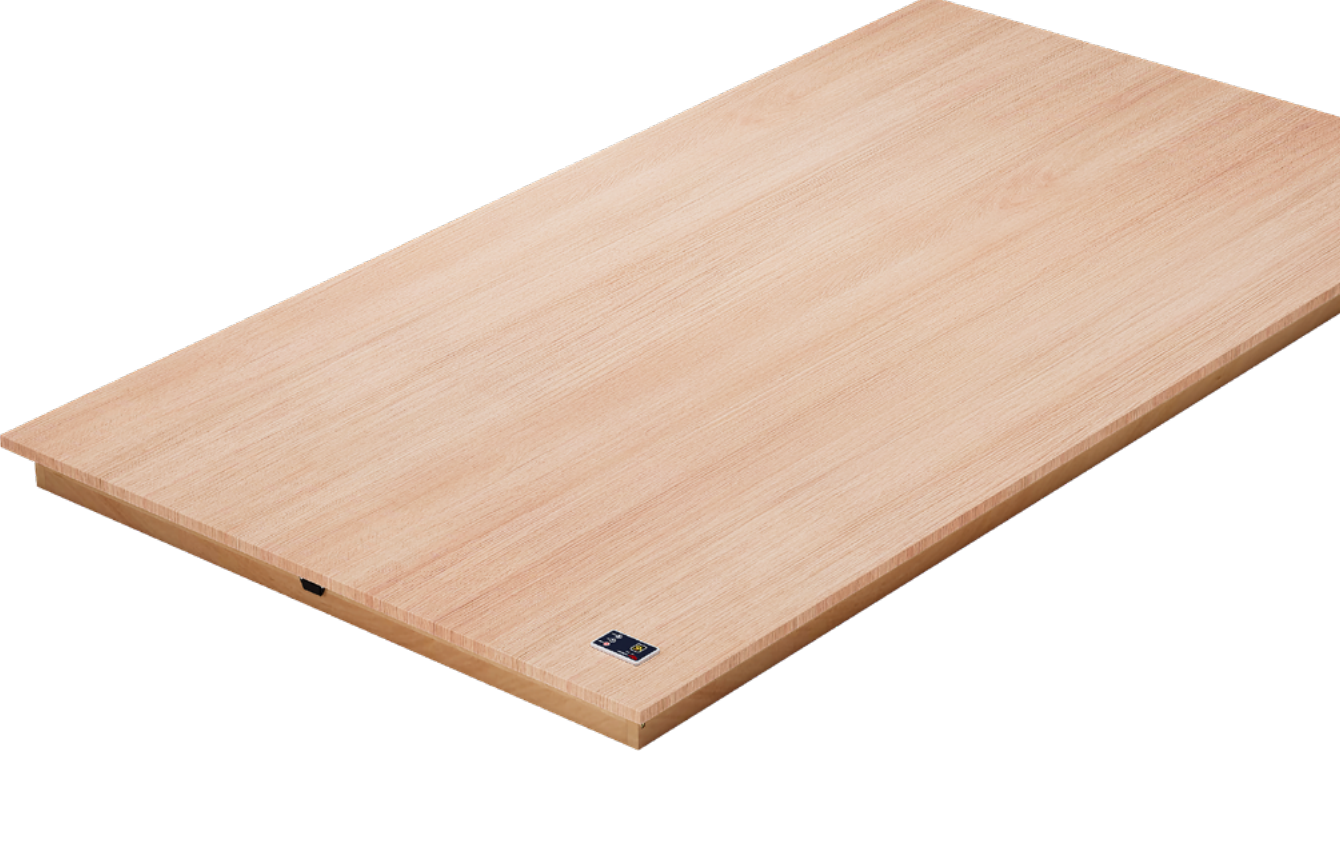

HO-H3 · 3 Innergy Bars
Three Innergy Bars, super-single size. The largest of the range, sized to heat one person sleeping. Silent, with the heating element carrying current only at one end and an earthed diffusion plate above it, which is what makes it suitable to sleep on.
Not yet available to order online.
